PRC offers an ideal solution for Motor performance testing which is appropriately designed to suit the requirements of motor manufacturers. It is mandatory to check the leakage of these motors and overall performance testing, so that these motors can run without any trouble. The machine is designed exclusively for this purpose meeting the industrial quality standards and gaining popularity among the motor manufacturers.
Salient features:
- Testing of leakage Current checking at different preset voltages
- Use of reliable & Industrial class components
- Use of branded raw material
- Cost effective & User friendly
- Designed to suit Industrial environment
- Aesthetically attractive
- Rugged & robust construction
- Long lasting performance
- Sound service back up after sale
Machine Function:

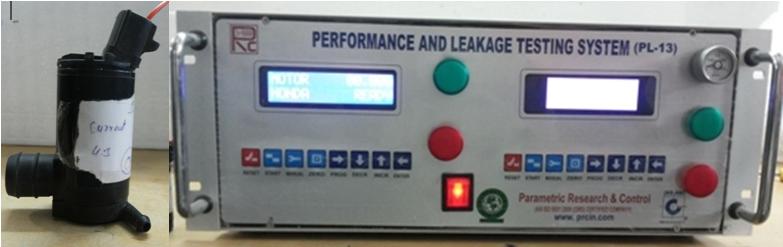

PRC make Motor Performance & Leakage Testing Machine is supplied with a suitable fixture built exclusively as per the design of Motor. The Motor is fixed on the fixture and operated through a single push button. Machine produces two different voltages one by one & simultaneously measures the current of their respective voltages.
Machine checks the current as per the permissible preset voltages given to the motor. If the current is within the limits, machine gives OK signal otherwise “NG” signal.
Machine is equipped with Pressure sensor for leakage testing. If the leakage is within the limits, machine gives OK signal otherwise “NG” signal.
The results are displayed on two LCD displays. Machine is designed to accept 16 digital inputs and 16 digital outputs.
Technical Specification:
- Application-Leakage & Current Testing
- Measuring Parameters-Leakage (in Bar) & Current (in Amp.)
- Sensors-Pressure sensor of suitable capacity
- Display-Two 20×4 lines LCD display to indicate above two parameters separately
- Function mode-Auto & Manual (selectable)
- Calibration-Automatic / Manual
- Special function-OK & NG with buzzer
- Counters-Online counters provided for Production
- Inputs-16 Digital inputs
- Outputs-16 TIP outputs
- Optional-Bar code printer facility
